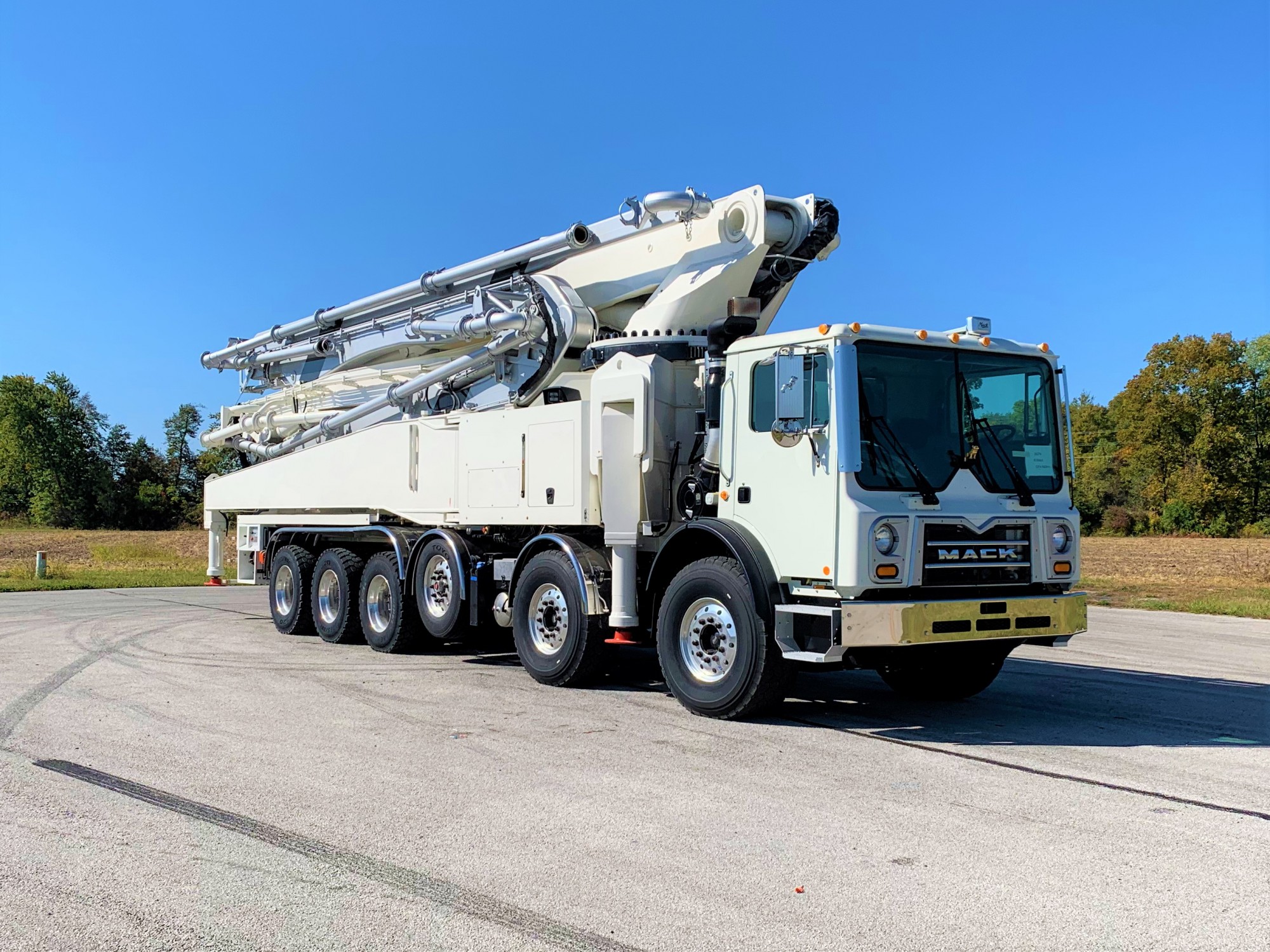

1 CIFA 60 XRZ6 (6-section) CARBON FIBER (2019)

Pump year

2019

Pump s/n

xx

Pump hours

0 m/l testing

Valve type

S-tube

Remote

HBC propor radio with 2nd unt as cord back-up

Pipe line

5" Metric 100%

Pipe condition

NEW DW Valme 5", tip to tip

Paint

NEW White

Last boom inspection

NEW

Truck VIN

1M2AV09CXFM013287

Truck make

Mack

Truck model

MRU613

Truck year

2015

Miles

546

Engine make / HP

Mack MP8 505 HP (13L) Engine

Transmission

Mack T318 LR 18-Speed Manual Transmission

Maximum output {fully variable}

240 cu yds/hr

Concrete cylinder {hard chromed}

10" x 79"

Strokes per minute

27

Concrete pressure {rod side}

1,210 PSI

Concrete pressure {head side}

 PSI

Hopper capacity

27 cu/ft

S-tube

9" x 7" {220 mm x 180 mm}

Hydraulic pump

Rexroth double main

Hydraulic system

Closed loop (HP)

Max. aggregate size

2 1/2" {65mm}

6 section Z-R fold {vert. reach}

193'-6" {59.1 M}

Maximum horizontal reach

177'-6" {54.1 M}

Reach from front of truck

167'-6"

Unfolding height

46'-6" {14.2 M}

Rotation

370 degree

Section articulation

90 / 180 / 180 / 180 / 180/ 210

Proportional Boom

YES (new),  & corded back-up

Delivery line

5"M {125mm} double wall
